Khoom Description

Cov Ntsia Hlau Pleev Ua Tau Zoo rau Hnub Ci Project

Cov Ntsia Hlau Ua Tau Zoo (Helical Piles) yog siab - lub hauv paus muaj zog steel uas muaj cov phaj helical. Lawv yog mechanically twisted rau hauv av siv cov khoom siv hydraulic los muab qhov ruaj khov, tam sim ntawd -txhawb lub hauv paus rau ntau lub hnub ci mounting systems, tshem tawm qhov xav tau kev khawb thiab pob zeb.

Xav paub ntxiv thov hu rauAmberntawmamber@longsungreen.com

Cov ntsiab lus technical

Khoom npe	Cov Ntsia Hlau Pleev Ua Tau Zoo rau Hnub Ci Project
Khoom siv	Siab -Lub zog hlau (Q235B, Q355B lossis sib npaug)
Kev kho saum npoo	Kub-Dip Galvanized (Nruab nrab txheej tuab Ntau dua lossis sib npaug li 80μm)
Txheem Lengths	1500mm, 2000mm, 2500mm, 3000mm (Kev cai ntev muaj)
Ncej kab	76 hli, 89mm, 114mm, 140mm (Common)
Helix Phaj Diameter	200mm, 250mm, 300mm, 350mm, thiab lwm yam.
Hom Flange	Customizable kom phim tshwj xeeb hnub ci mounting bracket sib txuas
Load Capacity Range	10 kN rau 150+ kN (Compressive & Tensile)
Installation Torque Monitoring	Yog (Torque correlated to load peev)
Cov khoom siv installation	Compact hydraulic tsav taub hau (SKid-steer, mini-excavator mounted)
Cov qauv tseem ceeb	Ua raws li ASTM, AS / NZS, thiab lwm yam qauv thoob ntiaj teb

Adjustable Ground Screw Pile For Solar Mounting System

Product Core Features

Ceev ceev, Tsis yog -Excavation Installation

Kev txhim kho tsuas yog siv cov tshuab compact, tsis muaj khawb lossis tshem tawm lub ntiaj teb. Qhov no ua kom nrawm nrawm ntawm qhov project ncua sij hawm, txo cov nqi zog, thiab txo qis kev cuam tshuam ntawm qhov chaw.

Tam sim ntawd Load-Bearing Capacity

Tsis zoo li cov pob zeb ua vaj tse uas xav tau lub lis piam los kho, cov ntsia hlau piles yog npaj txhij los nqa cov qauv tsim tam sim tom qab kev teeb tsa. Hnub ci racking sib dhos tuaj yeem pib tam sim ntawd.

Exceptional Durability & Corrosion Resistance

Ua los ntawm siab-lub zog steel nrog kub-dip galvanized txheej (tsawg kawg 80μm), cov pawg muaj kev ua haujlwm ntev-lub sij hawm tiv thaiv corrosion, ua kom ntseeg tau kev ua tau zoo nyob rau hauv ib puag ncig hnyav, suav nrog cov ntug hiav txwv.

Superior Geotechnical Adaptability

Kev teeb tsa qhov tob thiab kev teeb tsa tuaj yeem hloov kho hauv lub sijhawm tiag tiag - raws li kev nyeem torque. Qhov no ua kom muaj kev ruaj ntseg zoo thiab ua haujlwm tau zoo thoob plaws ntau yam kev nyuaj hauv av, suav nrog cov mos mos, pob zeb, lossis siab - dej- cov chaw rooj.

Lub zog muaj zog

Engineered rau siab compressive thiab tensile (rub- tawm) tsis kam, cov pawg no muab lub hauv paus ruaj khov thiab ruaj khov muaj peev xwm tiv taus huab cua huab cua thiab khov -thaw cycles.

Environmental Friendliness & Reusability

Cov txheej txheem kev teeb tsa khaws cia cov qauv av ntuj thiab ua rau muaj kev cuam tshuam tsawg kawg nkaus hauv toj roob hauv pes. Tsis tas li ntawd, pawg tuaj yeem feem ntau yog unscrewed thiab rov siv dua lossis rov ua dua thaum kawg ntawm lub neej ua haujlwm.

Ground solar project

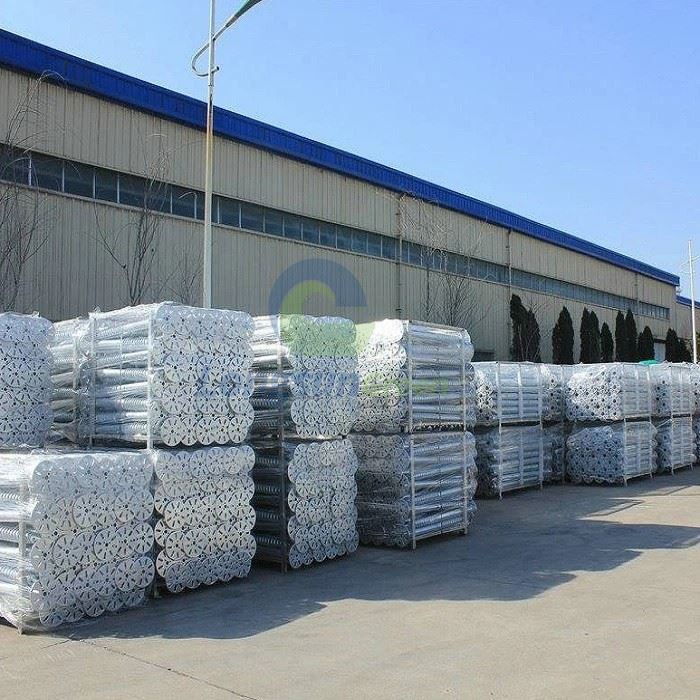

Screw Pile Foundation Packing

Cov ntsiab lus tseem ceeb rau kev txhim kho Helical Pile

Ua ntej-Kev Npaj Kev Txhim Kho

Ua ib qhov chaw tshawb fawb los txheeb xyuas thiab zam cov kev siv hluav taws xob hauv av thiab kev cuam tshuam loj.

Tshem tawm thaj chaw ua haujlwm thiab kos tag nrho cov chaw hauv pawg.

Peb-Cov txheej txheem kev teeb tsa

Vertical Placement:Siv ib qib los xyuas kom meej qhov ntsug zoo meej thaum lub sij hawm pib installation.

Torque rau Specification:Tsav pawg kom txog rau thaum lub hom phiaj kev teeb tsa torque ncav cuag -ces nres tam sim ntawd (Critical Step!).

Cov ntaub ntawv:Sau qhov tob kawg thiab kev teeb tsa torque rau txhua pawg.

Kev ceev faj tseem ceeb

Yog tias tsis kam lees, tsis txhob yuam kev teeb tsa. Qhia qhov teeb meem tam sim ntawd.

Siv lub tshuab txias txias - txiav saws (abrasive saw) rau txhua qhov yuav tsum tau ua pawg trimming. Siv zinc- nplua nuj xim rau txhua qhov chaw txiav.

Thaum txuas cov qauv mounting, nruj bolts nyob rau hauv ib tug ntoo khaub lig- qauv sib lawv liag.

Daim ntawv txheeb xyuas kev nyab xeeb

Hnav PPE kom zoo: lub kaus mom tawv, hnab looj tes tiv thaiv, thiab tsom iav tiv thaiv.

Khaws ib qho chaw nyab xeeb los ntawm kev tig tshuab thaum ua haujlwm.

Tshem tawm txhua txoj haujlwm thaum huab cua tsis zoo (xws li cua daj cua dub, nag hnyav, xob laim).

Kev lees txais

Piles yuav tsum yog cov kav dej tsis pom kev khoov.

Pile tops yuav tsum tau leveled mus rau ib tug uniform elevation.

Xa daim ntawv ua tiav pawg installation rau kev tshuaj xyuas.

Lub hauv paus ntsiab lus tseem ceeb: Txhim kho Plumb, Ua tiav Tsim Torque, khaws cov ntaub ntawv tiav.
